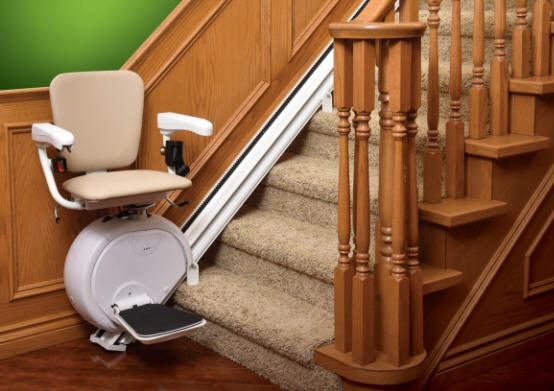

K2 SAVARIA STRAIGHT
STAIRLIFT
-
For residential use on a single flight of straight stairs
-

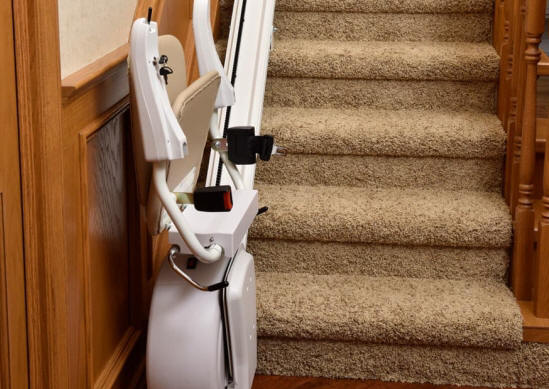

Fold-up width of only 10 ¾" – slimmest profile on the market leaves
more space on the stairs, making them safer for others
-
Quiet, smooth riding operation; 350 lb capacity
-
Battery operated with built in charging; can operate during power
failure
-
Optional outdoor package available for moderate climates
|
K2 Plus SAVARIA STRAIGHT
STAIRLIFT
-
Heavy duty unit for home or commercial use on a straight-run
staircase
-
Choose from 2 seat options, including a spacious Plus seat for
maximum comfort and 400 lb capacity (350 lb commercial)
-
Lift folds away when not in use to allow for more space on the
stairway
-
Quiet and smooth-riding operation from the rack and pinion drive
system
-
Plus Seat option features robust design that is suited to handle
transfers from wheelchair
-
Battery operated with continuous charging along the rail; can be
used during a power failure
Savaria K2 Plus Features - 400 lb Weight Capacity
Heavy duty capacity: Ready for
lifting up to 400 lb (residential applications with Plus
seat) on either side of a straight-run staircase.
Two seat choices: Plus seat
adjusts up to 24 ¼" wide and offers 400 lb capacity for
residential applications and 350 lb for commercial; L
seat adjusts to up to 20" wide and has a 350 lb capacity
for both residential and commercial applications.
Worry-free operation: Battery
operated with continuous charging along the rail using
standard power; can be used several times during a power
failure.
Simple controls: Onboard toggle
controls and 2 reliable radio frequency call stations to
call the chair up or down when needed.
Smooth, quiet operation: From the
rack and pinion drive system.
Obstruction detection: Multiple
safety sensors to detect an obstacle and stop the
stairlift if necessary.
LED diagnostic lights: To advise
of any issues (not available on Canadian commercial
units).
Master shut off: Will turn off if
not used for an extended amount of time.
Safety features: Swivel and lock
seat for added stability getting on and off the chair;
additional safety features include retractable seat
belt, non-slip footrest, overspeed brake and emergency
stop button on chair for commercial models.
Standard finishes: Neutral color
carriage with attractive stainless steel gear rack and
white rail; durable, easy-clean vinyl seat.
Warranty: 36 months parts
|
|
Savaria K2 Features
Ultra slim: Folded size of only
10.75", the smallest profile on the market to keep the
unit out of the way when not in use.
Quiet, smooth-riding operation: From
the rack and pinion drive system.
Battery operated: Built-in
charging on the top and bottom of the rail so the chair
can be used several times even through a power failure.
LED status light on unit: To
advise of any issues.
Obstacle sensor system: On the
carriage and footrest to stop the chair if it meets an
obstacle.
Safety features: Swivel and lock
seat at top landing, retractable seat belt, anti-slip
footrest, obstacle sensors.
Easy operation: Includes 2
infrared remote controls plus toggle switch on arm rest.
Comfortable and durable seat: With
width-adjustable arms up to 20" wide.
Flexible configuration: Can be
installed on either side of the stairs.
Fast installation: Enjoy your stair lift
quicker.
Master shut off will turn off if not used for an
extended amount of time: Money
saving option for electricity and battery life.
Warranty: 36 months parts
|
|
|
M2lift VERTICAL
PLATFORM LIFT
-
Complete residential porch lift package! Includes solid flush top
landing gate and integrated fascia panel for quick, seamless
installation
-
Travels up to 75" between 2 stops, with straight-through access (for
90º entry/exit, see Multilift
VPL)
-
Rust-resistant aluminum components; for indoor or outdoor use, even
in extreme climates
-
Smooth, quiet chain drive system housed in unique twin tower design
for an unobtrusive profile
-
750 lb capacity: accommodates a wheelchair or other mobility
equipment
-
Easy to operate with constant pressure controls
M2lift VERTICAL PLATFORM LIFT Features
Rugged, rust-resistant construction: Ideal for
indoor or outdoor use in moderate and coastal climates.
Rust-resistant aluminum car walls and floor, with
non-skid platform floor and exit ramp. All steel
components have yellow zinc/baked enamel powder coat for
rust protection.
Easy to install all-in-one solution: Includes
42" high aluminum flush upper landing gate with
spring-hinge and weather resistant lock (Savaria
WR-500), integrated aluminum fascia panel for a finished
look without custom construction, and upper landing
bridge for smooth navigation in and out of lift.
Battery operated reliable chain drive technology: Smooth,
quiet operation and swift 9 feet per minute travel.
Battery operated unit charged through a standard
electrical outlet so lift can be used during a power
failure.
Other standard features: Constant-pressure
operation, mountable weather-resistant cordless radio
frequency call/send stations with keyed access on car
and call stations, automatic access ramp.
Finish: Beige powder-coat paint.
Safety features: Slack chain
safety switch and underpan sensors to stop the lift if
an obstruction is detected, emergency stop button and
alarm on car.
Warranty: 36 months parts
M2lift VERTICAL PLATFORM LIFT Options
Available lifting/tower heights: 40"
(tower 79.5"), 60" (tower 99.5") and 75" (tower 114.5")
– all with 750 lb capacity
M2lift VERTICAL PLATFORM LIFT Specifications
Applications: Residential,
indoors, outdoors
Standard capacity: 750 lb (340 kg)
Shortest travel distance: 15.5"
(39.37 cm)
Maximum travel distance: 75"
(190.5 cm)
Platform size: 37" x 54"
(interior)
Nominal speed: 9 ft/min (0.025 m/s)
Car access/configuration: straight
through enter/exit
Drive/motor: direct drive gearbox
with chain suspension
Power supply: 24 VDC motor and
operating system with 120 VAC battery charging
Complies with ASME A
18.1 part 5 -2017 USA; Canadian residential in regions
that do not require CSA B613-00.
|
-
Savaria Stairfriend CURVED
STAIRLIFT
-
Designed for indoor access over stairs with multiple levels, curves
or intermediate landings
-
Double rail custom bent to exact specifications; out-of-the-way
parking option
-
Quiet, smooth-riding operation with 350 lb capacity; choose from 2
seat styles
-
Suitable for residential use and commercial applications in some
regions
-
Battery operated; allows operation during a power outage
- Savaria Stairfriend Curved StairLift Features
Battery powered: Operates through
power interruptions with charging stations at top and
bottom and optional intermediate landings.
On-board controls: With soft start and smooth
stop operation, seat swivels and locks into position for
safe boarding and deboarding, retractable seat belt.
Radio frequency remote controls: Offer
greater range and control of device from other rooms.
Overspeed governor and obstruction sensors: To
stop the chair if it meets an object in both up or down
travel directions.
Reliable rack and pinion drive: With
sturdy, twin steel tube rail construction.
Custom-built: For curves, turns,
landings and parking, and can be mounted on either side
of stairs.
LED status lights: To advise of any
issues.
Finish options: Choice of seat with
wipe-clean synthetic leather.
Warranty: 36 months parts.
- Savaria stairfriend Curved Stairlift Options
Options: Choice of
seat, 90º or 180º parking, top or bottom
overrun, keyless access, emergency stop
button, extra-long seatbelt and 5-point
harness.
Savaria Stairfriend Curved Stairlift
Specifications
Applications: Residential,
commercial*, indoor.
Standard capacity: 350
lb (160 kg)
Maximum travel: 84'
(25.60 m)
Nominal speed: 20
ft/min, (0.1 m/s), 12
ft/min (0.06 m/s)
through curves.
Motor: 1/2
hp, 24V (DC)
Fold-up width: 15.5",
39 cm
Fold-out width: 24.5",
62 cm
Range of incline: 0˚
to 52˚
|
|
